Product Description

Product Description Specification
Thickness 0.6~1.0mm is for inspection, common use
Cold rolled steel coil, Galvanized steel coil, Yield Strength: SECC40
Feed-in Device

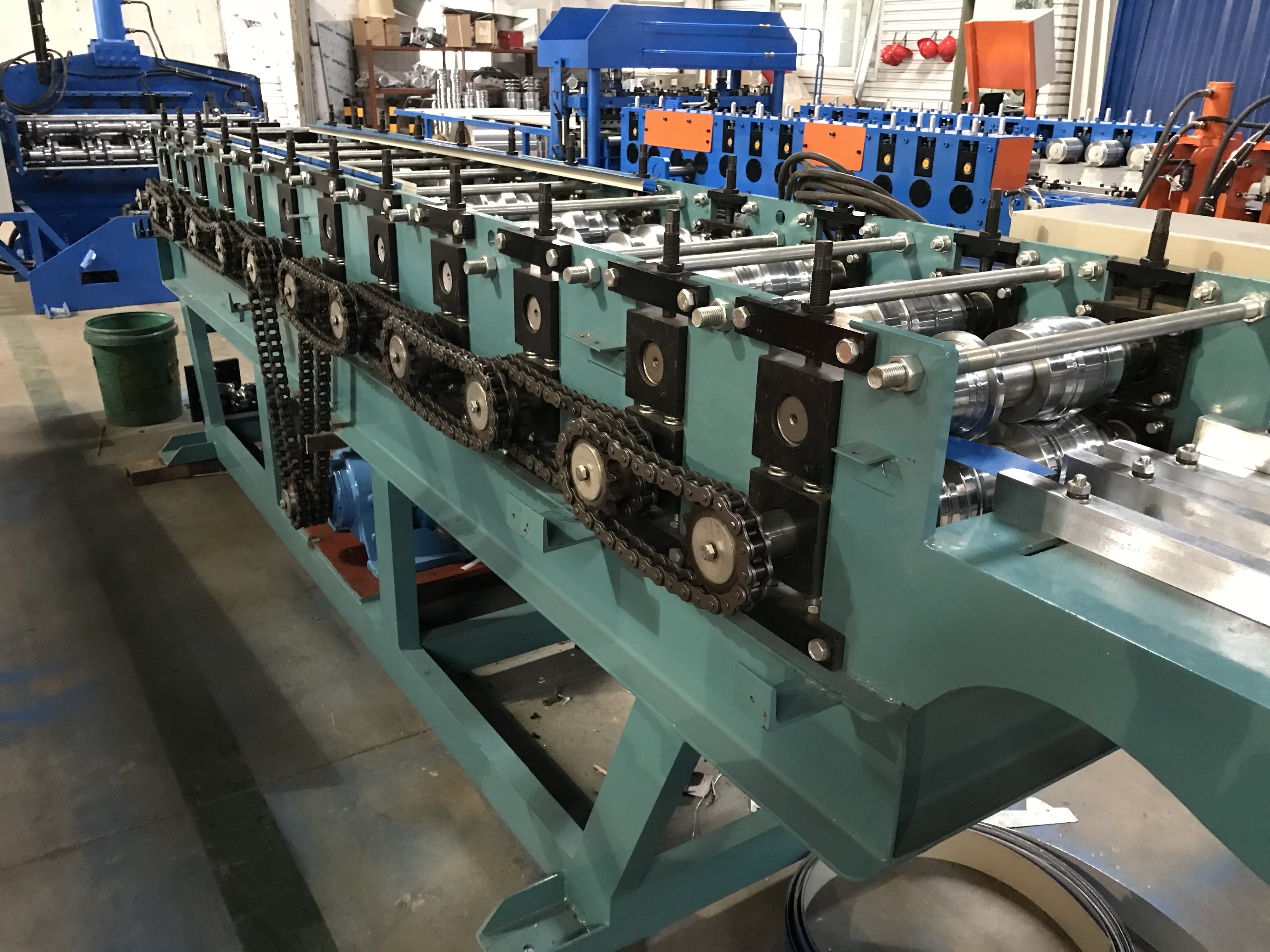

Gear/Sprocket driving, 12-step to form
PLC (Siemens), Inverter (Schneider), Touch Screen (Siemens), Encoder(Omron)
Rollers manufactured from 40Cr, CNC lathes, Heat Treatment(HRC48~52), Hard Chrome, Fine Polish
Shaft Diameter=Φ60mm, Precision Machined

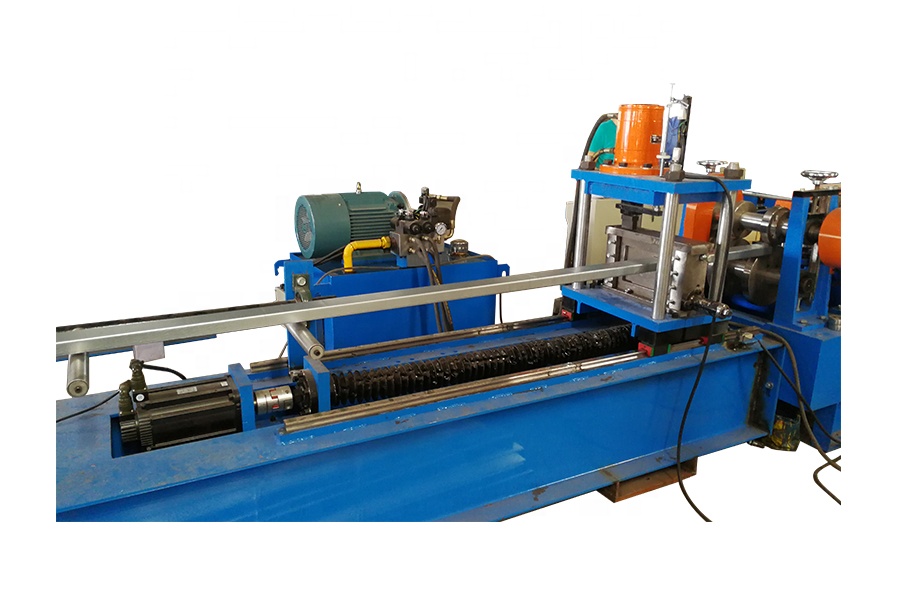

Stop to Cut, Post Cut, Blanking cut
Pump motor =7.5KW; Cutting pressure=Max.10Mpa
Cutting tool material: Cr12, Heat treatment
Main  Motor=5.5KW,  Frequency speed control
Max. Liner speed of roll former: approx. 15~18m/min
Packing & Delivery To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Company Profile BRACE Roll Forming Machine WHICH IT CAN DESIGN FOR ONE SIZE OR DIFFERENT SIZE WITH SPACER CHANGING OR ADVANCE AUTOMATIC CHANGE BASIS ON REQUEST. FAQ 20 YEARS EXPERIENCE DESIGN AND MANUFACTURING, OVER 80% SALES FOR OVERSEA MARKET, SUPER QUALITY WITH REASONABLE PRICE BASIS ON CUSTOMIZED REQUEST.

Contact us if you need more details on Roll Forming Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Brace Bending machine、Truss Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : TRUSS/PURLIN MACHINE
