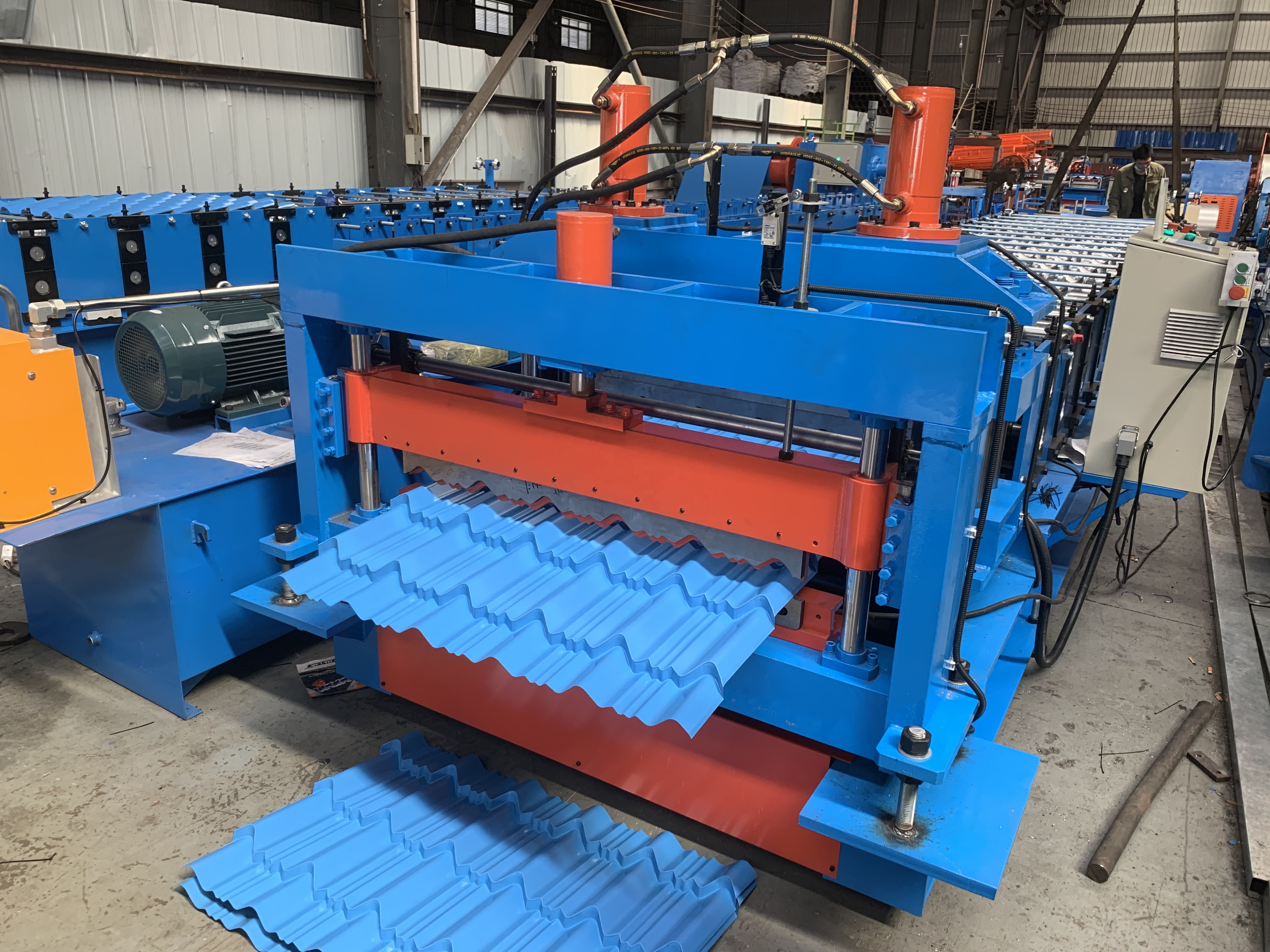

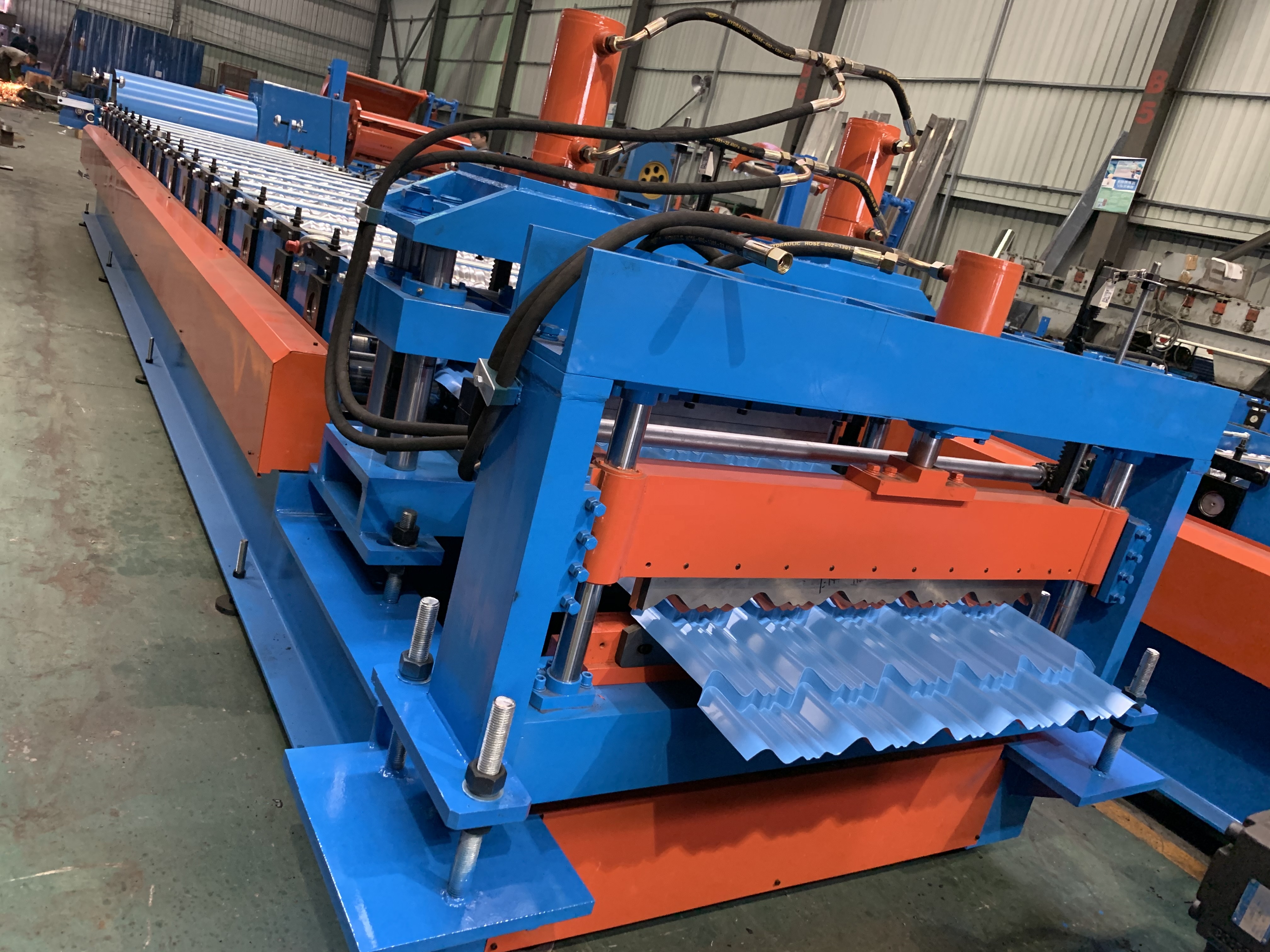

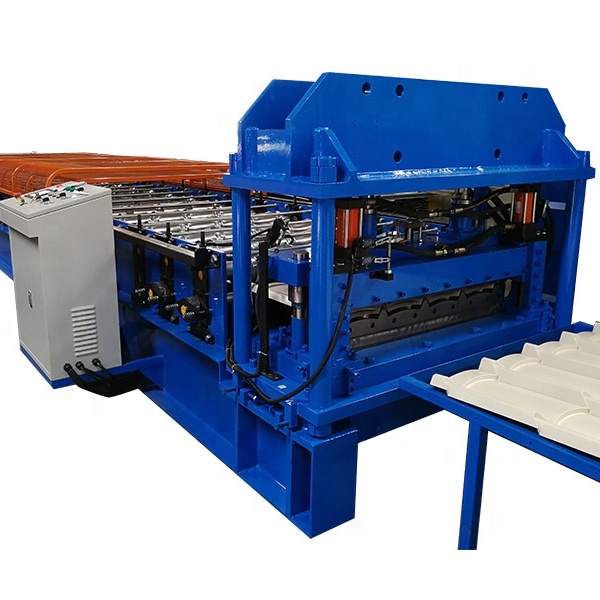

CLASSIC TILE ROOFING ROLL FORMING MACHINE
Product Description
Product Description
Specification
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Company Profile
FAQ TILE ROOFING SHEET MACHINE IS BASIS ON CUSTOMER PROFILE DESIGN WHICH IT CAN ROLL FORM THE DIFFERENT TILE PROFILE AS REQUEST. Contact us if you need more details on Metal Tile Roofing Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Classic Tile Machine、Roll Forming Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.

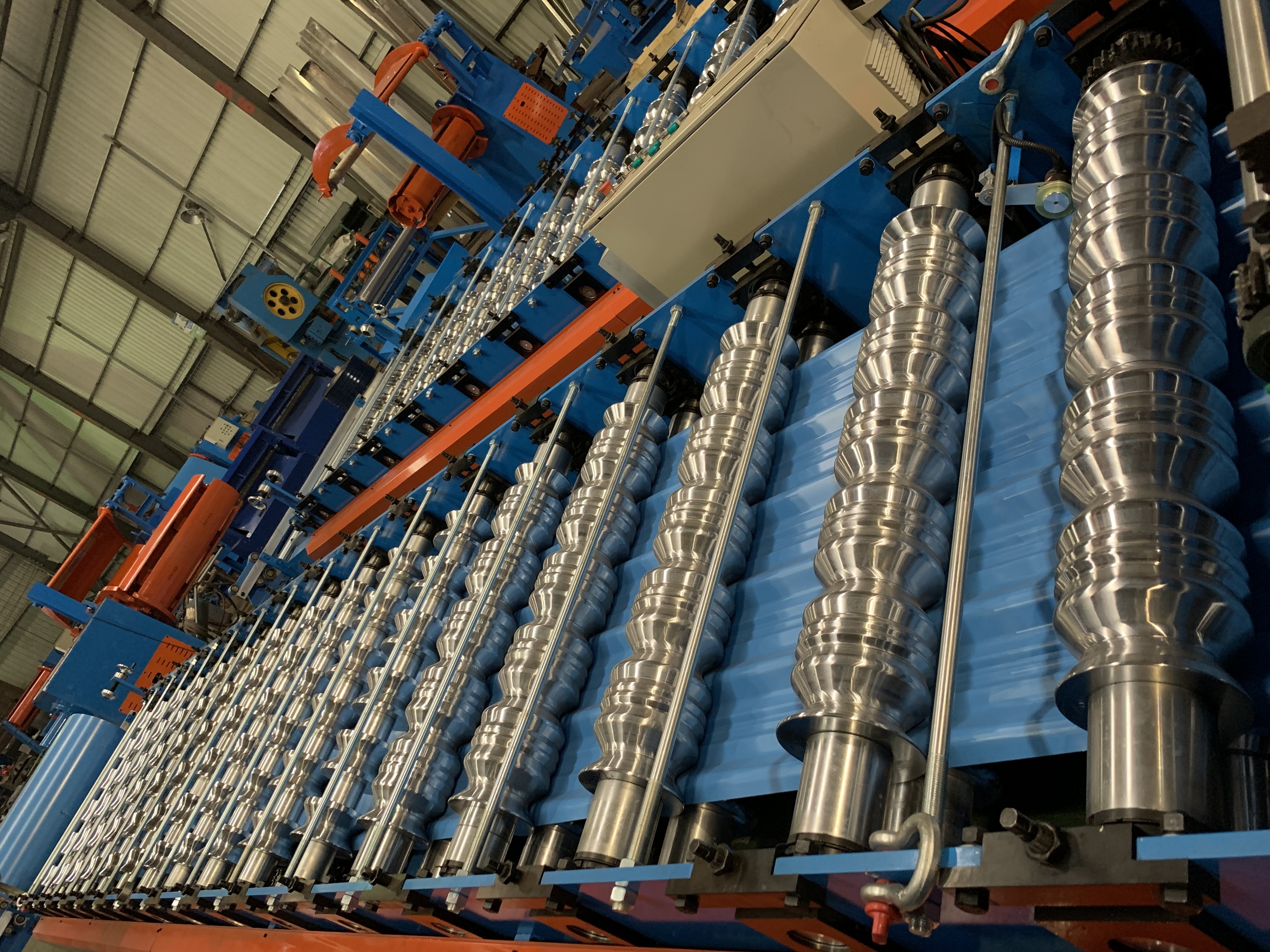

Specification 0.35mm Minimum Thickness, 0.80mm Maximum Thickness Thickness 0.5mm is for inspection, common use Effective width: 930mm Feeding width: 1220mm | Rollers manufactured from 45# OR 40Cr steel, CNC lathes, Hard Chrome Coated Shafts Diameter=ф75mm, Precision Machined Gear/Sprocket driving；16-step to form |
Entry roller & Manual Pre-shearing device Un-powered Smart cut control, to cut off the end of the final piece of sheet only Working thickness up to 0.8mm | Main motor =7KW, Servo Motor control Max. line speed of roll former: 5~6m/min (Basis on stair length: 350mm) |
PLC（Siemens）, Touch Screen（Siemens）,Encoder（Omron） | Stop to press, stop to cut, No blanking cut Separated carriage for pressing and cut-off, dropping cutting type |
Stair depth=25mm Hydraulic group, Professional fans cooling system Pump motor =11 KW, with accumulator to increase the speed | 4- Pillars structure instead of old frame design |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Company Profile FAQ TILE ROOFING SHEET MACHINE IS BASIS ON CUSTOMER PROFILE DESIGN WHICH IT CAN ROLL FORM THE DIFFERENT TILE PROFILE AS REQUEST. Contact us if you need more details on Metal Tile Roofing Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Classic Tile Machine、Roll Forming Machine. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : METAL ROOFING MACHINE
