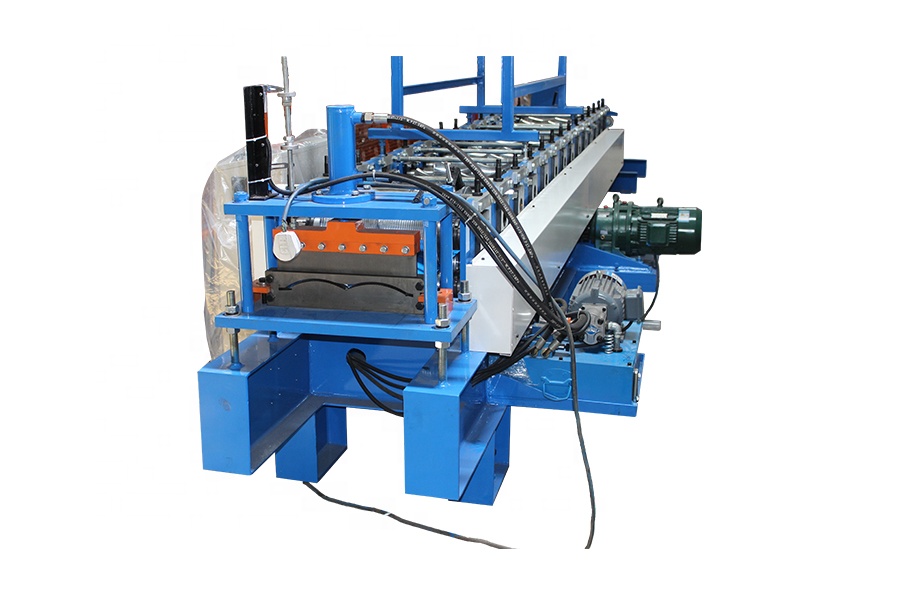

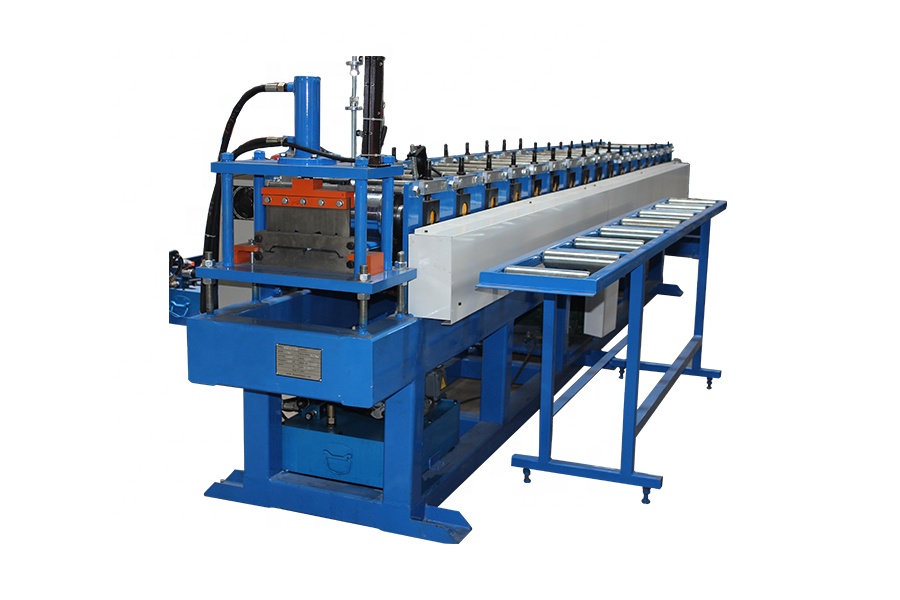

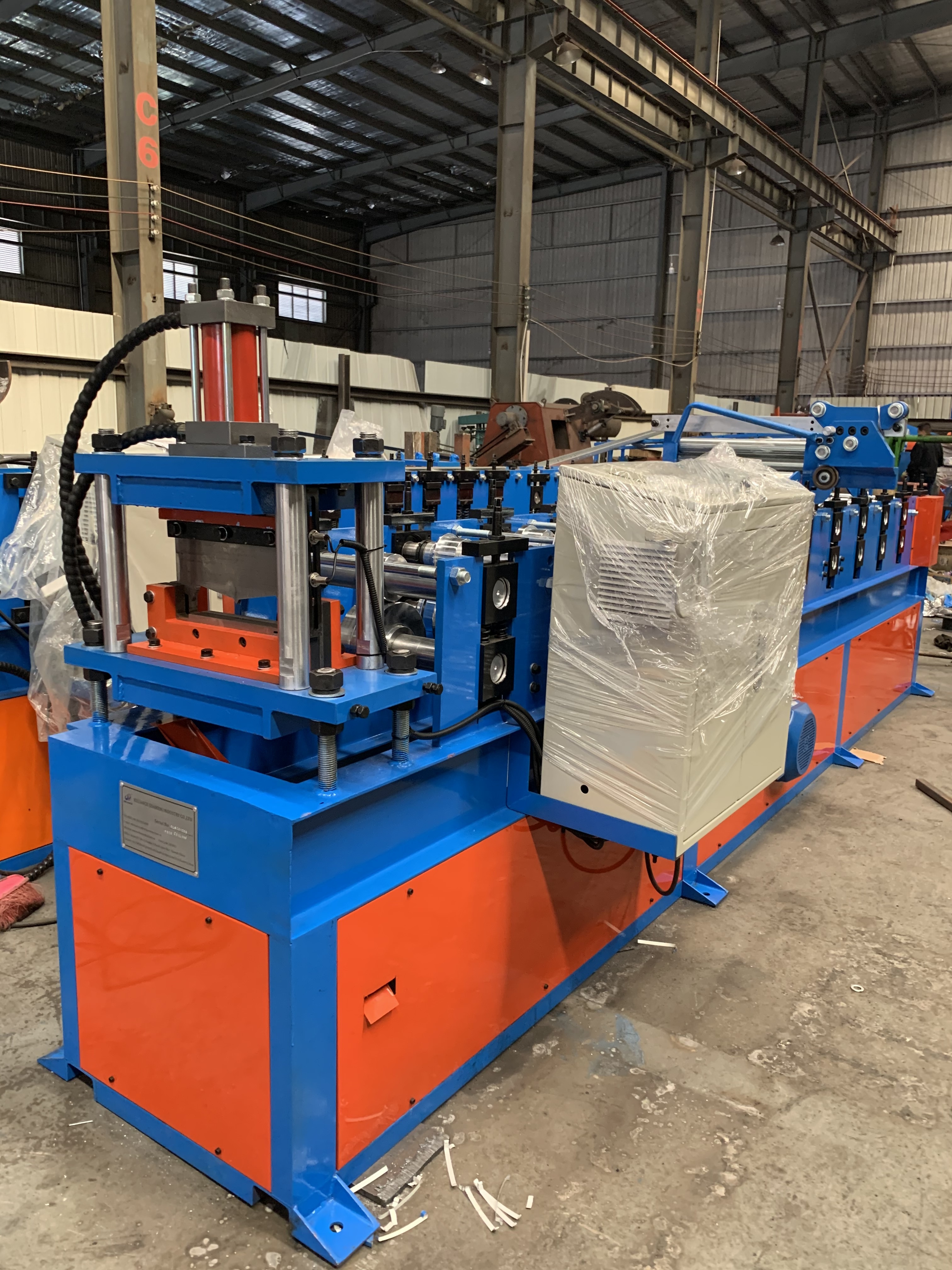

CEILING PANEL ROLL FORMING MACHINE
Product Description
Product Description
Specification
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Company Profile
FAQ CEILING PANEL MACHINE IS BASIS ON CUSTOMER PROFILE DESIGN WHICH IT CAN ROLL FORM THE CUSTOMER DESIGN CEILING PANEL. Contact us if you need more details on Ceiling Panel Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ceiling Cold Rolling Machine、Roll Forming Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
Specification 0.4-0.6mm material thickness 0.5mm thickness is for inspection, common use Pre-paint Coil, Galvanized steel; Yield strength: 250~550Mpa | Rollers manufactured from 45# OR 40Cr steel, CNC lathes, Hard Chrome Coated Shafts Diameter=ф60mm, Precision Machined Gear/Sprocket driving；10+1-step to form |
Entry roller & Manual Pre-shearing device Un-powered Smart cut control, to cut off the end of the final piece of sheet only Working thickness up to 0.6mm | Main motor =5.5KW, Frequency speed control Max. line speed of roll former: 18m/min |
PLC（Siemens）, Touch Screen（Siemens）,Encoder（Omron） | Hydraulic Cutting Device Stop to cut, Post cut, no blanking cut Hydraulic tank, Pump motor =3KW (Mounted inside of machine body) Cutting tool material : Cr12, Heat treatment； Mould steel with quenched treatment |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Company Profile FAQ CEILING PANEL MACHINE IS BASIS ON CUSTOMER PROFILE DESIGN WHICH IT CAN ROLL FORM THE CUSTOMER DESIGN CEILING PANEL. Contact us if you need more details on Ceiling Panel Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ceiling Cold Rolling Machine、Roll Forming Machine. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : CEILING PANEL MACHINE
