SNAPLOK ROOF CURVING MACHINE
Product Description
Product Description
Specification
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Company Profile

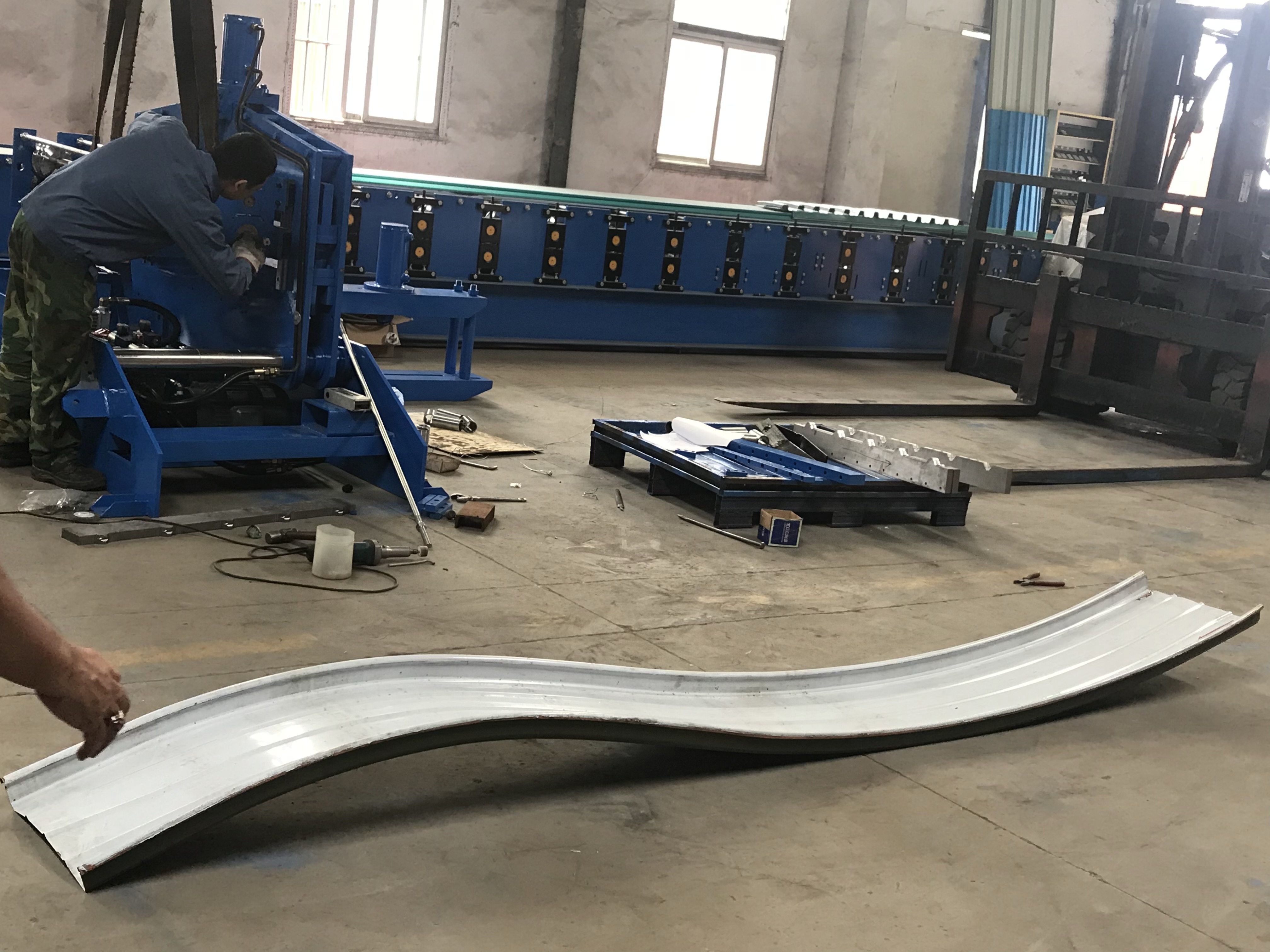

FAQ SNAPLOK ROOF CURVING MACHINE IS BASIS ON CUSTOMER PROFILE DESIGN WHICH IT CAN BEND THE DIFFERENT RADIUS IN CONVEX OR CONCAVE CURVE FOR THE REQUEST. Contact us if you need more details on Bending machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Curving Machine、Snaplok Panel Curving Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
Specification Material: Steel: 0.3-0.8mm; Effective width: 300~500mm Material tension: G300MPa | Parallel: The narrowest: 300mm; the widest: 700mm Taper: The narrowest for the tapered side: 200mm; The widest for the other side: 700mm (range of slope: 0~2.5 degrees.) Curve machine specification: Gear driving Rollers manufactured from GCR15, CNC lathes, hard Chrome Coated Shafts material from 40Cr, Precision Machined |

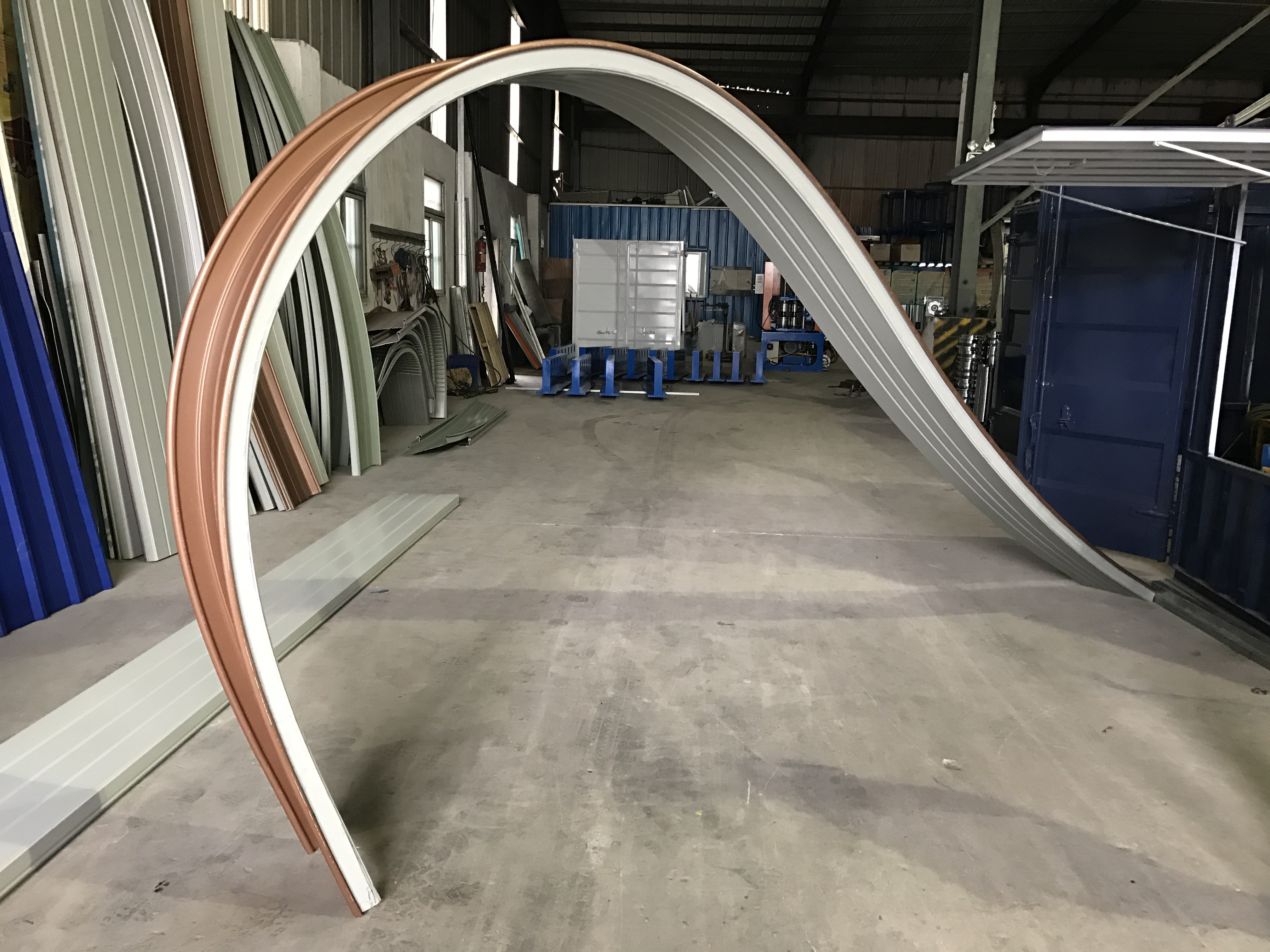

Main motor: 4 KW; Servo motor: 2KW Forming speed: Approx. 15m/min | Automatic set-up radius, 10 different radius can be inputted in control system at the same time Curving taper panel need two times. Can curve positive arch and negative arch profile through one time operation Under one-off forming, Minimum positive arch radius 8m; Minimum negative arch radius 11m; Positive arch radius 3m through two or three times curving, Positive arch radius 2m when the thickness of aluminum ≥1mm, then the material (3003 and 3004) |
The PLC Control System, Combined with: PLC (SCHNEIDER), Touch Screen (SCHNEIDER), Inverter (SCHNEIDER), Encoder (Omron) | Can be used, we advice positive arch radius 3m when use 3004 because some this kind of material would be crack after finish curving. Positive arch radius 12m-14m when the thickness of steel is 0.8mm If the material is soft, then the machine can curve Minimum positive arch radius 3m. Remark: curving radius will be finalized upon the buyer visit to the seller’s factory. |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Company Profile FAQ SNAPLOK ROOF CURVING MACHINE IS BASIS ON CUSTOMER PROFILE DESIGN WHICH IT CAN BEND THE DIFFERENT RADIUS IN CONVEX OR CONCAVE CURVE FOR THE REQUEST. Contact us if you need more details on Bending machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Curving Machine、Snaplok Panel Curving Machine. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : BENDING/CURVING MACHINE
